SOLID - Tisvol

Powered by Superior Quality

– MULTIPLE LOADS FOR MEDIUM BULKS –

Maximum versatility and adaptability for the transport of medium bulks.

The Tisvol multitool

It covers the medium bulk loads perfectly.

MEASUREMENTS

Two possible lengths combined with three heights

9,600 mm and 10,600 mm in length; and 1,800 mm, 1,900 mm and 2,000 mm in height. Resulting capacity: Between 41 m3 and 50 m3.

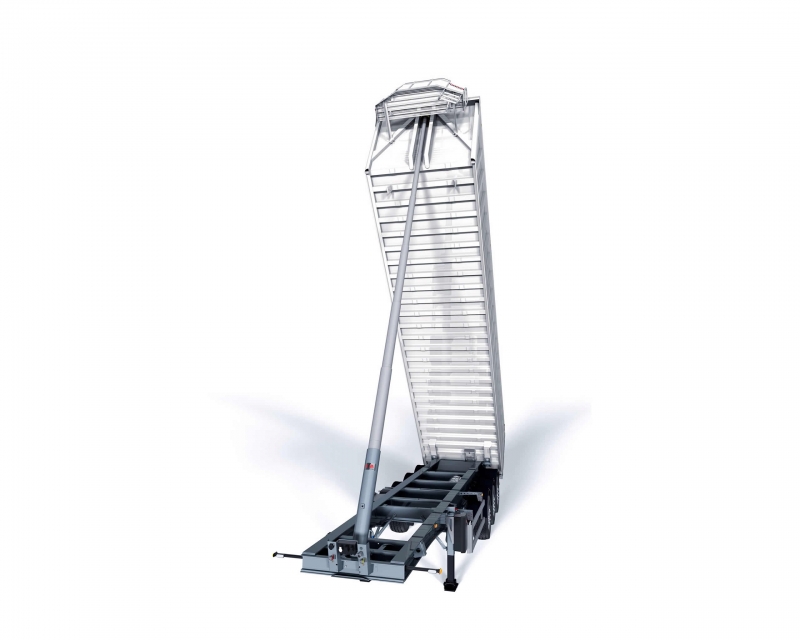

THE EXPERIENCE IN TIPPING

Satisfactory and safe tipping

Regardless of what is transported, the engineering of the Solid range ensures a satisfactory and safe tipping experience.

[+ Info on Tisvol tilt technology]

CC BODY

The versatility in the bodies has to start from the maximum resistance

The Metal plate and Ribs (CC), in any of its thickness combinations, is the most robust configuration for all types of loads.

[+Info about CC bodies]

E Frontal

External inclined front

The inclined front provides great advantages to this range. In the Solid range, the exterior front with 21º inclination is the most suitable option in most situations. Cleanliness, simplicity, robustness and lightness.

[+Info about E Frontal]

Chassis

Series width of 1,400 mm

With the standard equipment of the chassis width of 1,400 mm, the transport safety of this range is increased.

[+ Info about Tisvol Chassis]

Doors

A very adaptable option

That’s why all door options are available: the one-piece door, the universal with half espagnolette lock and the universal with crossbar, choose the one that best suits your needs.

[+ Info about Tisvol Doors]

ACCESSORIES AND OPTIONALS FOR THE DOOR

Traps, latches and actuators

Tisvol has all kinds of accessories and options that will make the Solid range the most versatile: two flaps for the two leaves, one for the one piece, with pneumatic drive, closures with cameras or actuators automatically activated from the TSV.

TARPAULINS

Maximum variety of coverage systems

The most versatile tool of Tisvol allows the configuration with the maximum variety of systems of cover: the tarpaulin of lateral opening, the one of guides Tisvol or the sliding Cramaro. Check the one that best suits your requirements.

[+ Info about Tisvol Tarpaulines]

AXLES

The selection of the best axle is a guarantee of safety

The axles are in constant contact with the road and the Solid range supports multiple loads. Solid is equipped as standard with the SAF version BI9 axle with reinforced axle shaft, bimetallic vented discs and CD adapted by SAF for Tisvol according to the requirements that the company’s research department requests from its suppliers.

THICKNESS AND REINFORCEMENTS OF THE BODYWORK

From the lightest configuration to the most reinforced

All options are available in the most versatile range: from the lightest configuration of 5.1 mm on the floor and 3.3 mm on the sides to the more reinforced of 8 mm on the floor and 6 mm on the sides, as well as square or rectangular reinforcements on the back of the sides.

[+ Info about thicknesses and reinforcements in the bodies]

INCREASES SECURITY

HYVA cylinder 179

Its greater diameter increases the security and stability in tilting.

Technology

Solid involves transportation possibilities for multiple materials.

It includes as standard the smartboard system, an accessory able to provide you with information about kilometers traveled, load on the axles or suspension drive among other functions.

Accesorios tecnológicos

Optimize the configuration of your vehicle

Tisvol puts at your disposal a large number of possibilities to optimize the configuration of your vehicle with the multitechnology for Solid.

[+ Info about technological accessories in Tisvol]

EXTERIOR FINISH

Painted or in natural aluminum finish

You decide the color so your clients recognize you.

The premium range of SOLID

Coroa technology increases stability, which provides the best tipping experience for vehicles with the maximum volume.

[Make it Coroa]

What are you waiting for

I want a SOLID

If you need more information or request a quote, please fill in the following form. We will contact you as soon as possible.

Select country:

Select region:

I have read and accept the privacy policy and the conditions of the treatment of my personal data.

I agree to receive the sending of commercial communications.

HOW A TISVOL IS BUILT

The process of building a Tisvol includes more than 40 robots that are part of the production process, more than 4km of welding per unit and more than 1,000 screws.

An automation of more than 85% of the welding process in all its joints to obtain a maximum level of quality and a guarantee that the manual process can not sustain over time. The welding stations are automated with 3 or 5 axis robots equipped with the highest technology in CNC.

All this automated assembly is born from the dream of the founders, the vision of the direction and the execution of all the human team that forms Tisvol, and that is not to forget that touch of craftsmanship, the know-how of our staff, with many years of experience applied to each vehicle. Surprise yourself knowing how a Tisvol is built:

[+Info about the building system in Tisvol]

Aluminum in Tisvol

Tisvol has long embraced aluminum as the center of its business. In all these years, already more than 40, our raw material has become our soul and has been integrated into our DNA.

[+Info about aluminium in Tisvol]

Power systems in Tisvol

The shielded electrical system is authorized for the transport of dangerous goods; pneumatic system by colors for quick identification of faults; connection system of simple and mixed hydraulic hoses with safety limit switches.

[+Info about power systems in Tisvol]

The importance of tare weight in Tisvol

In all the ranges, in any of our vehicles, the tare is one of the main values that our customers highlight after trying them. Choosing Tisvol is choosing higher payload, better optimization. Tare weight is the basis of profitability for our customers, and at Tisvol we are aware of this, which is why we allocate a large part of our resources to the development of lighter vehicles with maximum durability.
